Home / Vehicle Lifts / Column Lifts / Finkbeiner EHB1005 Wireless Mobile Column Lift Set of 6

Finkbeiner EHB1005 Wireless Mobile Column Lift Set of 6

Product Code: F103

Get A Quote Today
This product is already in your quote request list.
Browse the list
Make an Enquiry | Email to a Friend
Be the first to review this product
  • Features & Benefits
  • Photo gallery
  • Technical Specifications
  • Product Brochures
  • Reviews (0)

Description

  • Wireless; radio communication of the columns without cables.
  • Power supply via batteries.
  • EasyCharge: integrated charging cables, charging of up to 4 columns via one mains supply.

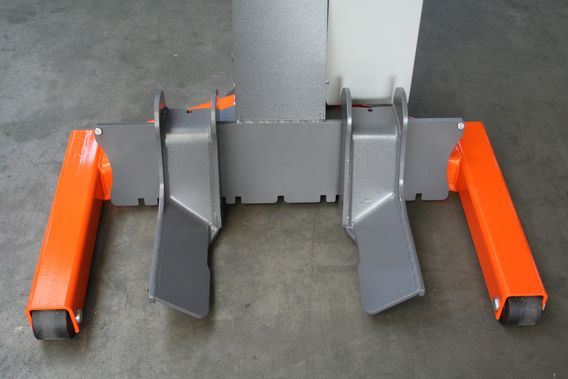

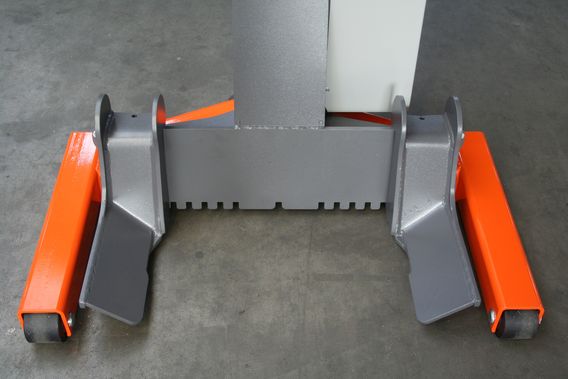

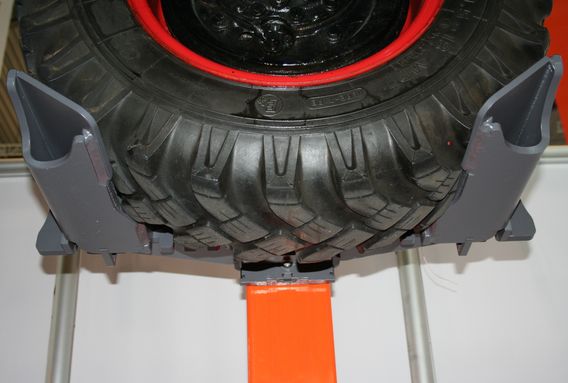

  • Adjustable wheel fork for different wheel diameters.
  • Hydraulic drive, hydraulic cylinder encased and protected by a rectangular tube.
  • Double load securing.
  • Mechanical locks at any lifting height.
  • Multifunctional operation panel, at one column.
  • Configuration of the columns with permanent memory.
  • Multi-set operation of several lifts in parallel.
  • KEYFREE system, switching on the lift without any electronic keys.
  • SoftControl with continuous synchronization.
  • SoftStart for load-friendly lifting and lowering.
  • SleepMode to avoid radio interferences.
  • VarioSpeed, variable lifting and lowering speed.
  • Servicemode, for an easy diagnosis of the lift.
  • TUBE, guiding of the lifting carriage.

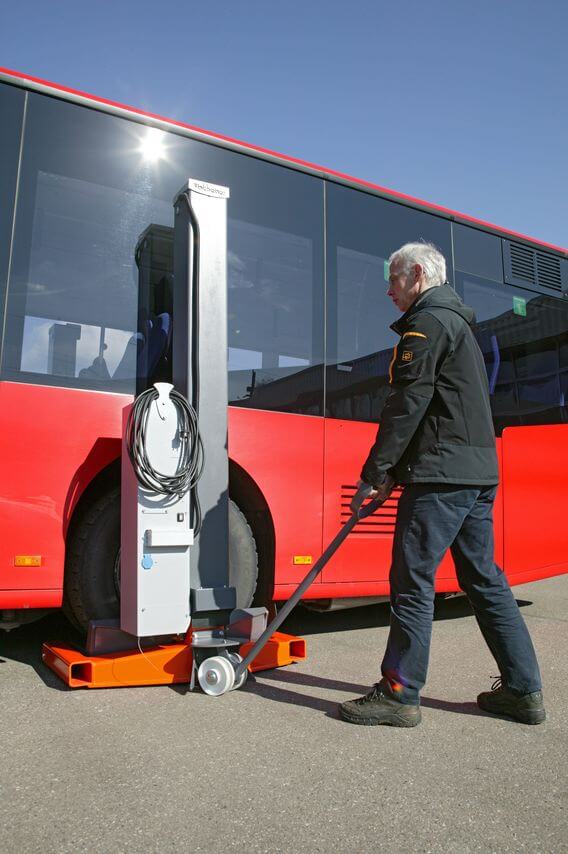

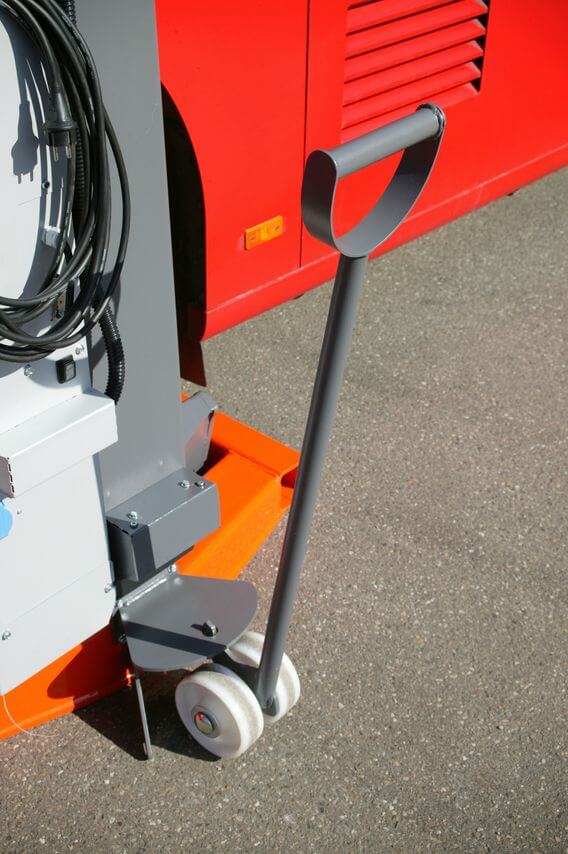

  • Detachable wheel handle to move the columns, 1 piece per lift set.
  • LeanDesign; torsion-resistant, light and strong column.
BATTERY CAPACITY PER COLUMN50Ah
CAPACITY7.5 Ton per Column/45 Ton per Set
CHARGING CONCEPTEasyCharge
CHARGING TIME8 Hours
CHARGING VOLTAGE230V
COMMUNCIATIONCommunication via Radio, Wireless
CONTROLElectronic
FEATURE & BENEFITSWireless; radio communication of the columns without cables. Power supply via batteries. EasyCharge: integrated charging cables, charging of up to 4 columns via one mains supply. Adjustable wheel fork for different wheel diameters. Hydraulic drive, hydraulic cylinder encased and protected by a rectangular tube. Double load securing. Mechanical locks at any lifting height. Multifunctional operation panel, at one column. Configuration of the columns with permanent memory. Multi-set operation of several lifts in parallel. KEYFREE system, switching on the lift without any electronic keys. SoftControl with continuous synchronization. SoftStart for load-friendly lifting and lowering. SleepMode to avoid radio interferences. VarioSpeed, variable lifting and lowering speed. Servicemode, for an easy diagnosis of the lift. TUBE, guiding of the lifting carriage. Detachable wheel handle to move the columns, 1 piece per lift set. LeanDesign; torsion-resistant, light and strong column.
FRAME HEIGHT110mm
FRAME LENGTH910mm
FREQUENCY OF POWER SUPPLY50Hz
FUSE, PER COLUMN2.5A
GROUND CLEARANCE AT FRONT15mm
GROUND CLEARANCE AT REAR10mm
HEIGHT OF COLUMNS2255mm
LENGTH OF CHARGING CABLE10Metres
LENGTH OF FORK300mm
LIFT CYCLES AT 50% LOAD12
LIFT CYCLES AT FULL LOAD8
LOAD SAFETY DEVICEHydraulic and Mechanical
LOAD SUPPORTAdjustable Wheel Fork
MAX. LIFTING HEIGHT1850mm
MAX QUANTITY OF COLUMNS10
MAX. RISE1750mm
MAX WHEEL SIZE Ø1140mm
MIN WHEEL SIZE Ø550mm
MODE OF DRIVEElectro-Hydraulic
MODE OF OPERATION1 Central Control Unit
MOTOR POWER PER COLUMN2.2KW
POSITION OF COLUMNSymmetric
POWER SUPPLYBattery-Powered
PROTECTIONIP54
QUANTITY OF COLUMNS6
TIME TO FULL RISE70Seconds
TOTAL BATTERY VOLTAGE24V
TRAVELLING DEVICE1 Travelling Device per Lift set
TRAVELLING DEVICE AT FRONT2 Front Wheels, Fixed
TRAVELLING DEVICE AT REAR1 Wheel Handle, Detrachable
TYPE OF BATTERYDeep Cycle, Maintenance-Free
TYPE OF COLUMNS1 master, 3 slaves
WARRANTY1Year/3Year with Service Agreement
File-1447279390.pdf
